1 / 275Kva Transformer 3 Phase 480V-208V/120V Delta Wye 460V 220V 440V Powertran

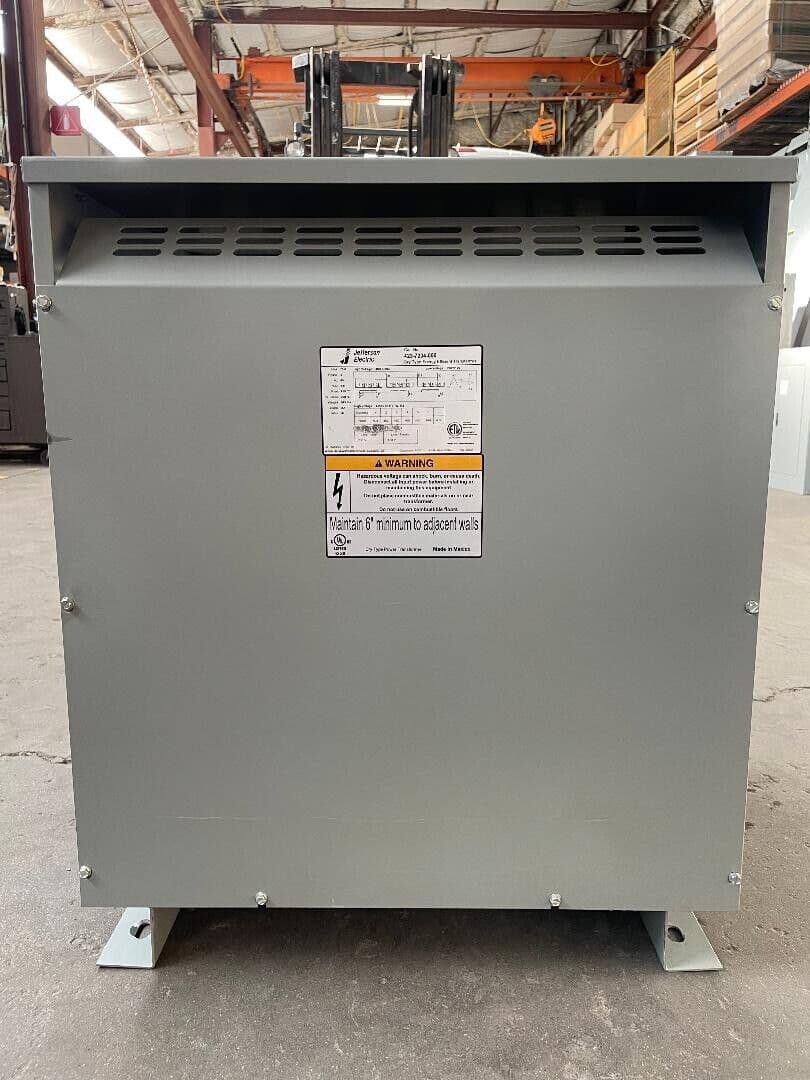

A reconditioned 75 kVA, 3-phase, 480V-to-208Y/120V Delta Wye dry-type transformer, professionally tested and backed by a 1-year warranty.
Full Description
This is a custom-built 75kVA, three-phase, dry-type distribution transformer that steps 480V Delta (Wye-N) primary power down to a 208Y/120V secondary — sized for equipment like control panels, motors, CNC machines, welders, conveyor systems, pumps, printing equipment, and general fabrication tools. It's housed in a NEMA 3R enclosure, shipped as Type 2 for indoor installation and field-convertible to Type 3R for outdoor use with a weather shield; it's floor-mounted, with accessories available for wall or trapeze (ceiling) mounting. Construction uses non-aging, cold-rolled silicon steel cores and aluminum windings, with Class H (220°C) insulation rated for a 150°C temperature rise, vacuum-pressure-impregnated windings, and primary adjustment taps (2 above, 4 below, in 2.5 percent increments) at 60Hz. Each core is coated against moisture ingress and electrically balanced to reduce axial stress during short-circuit events. The unit meets DOE 2016 and Natural Resources Canada (NRCan) minimum energy-efficiency standards, rated at a minimum of 98.60 percent efficiency at 35 percent loading and 75°C. Terminals are sized for 125 percent of secondary nameplate current and 250 percent of primary nameplate current, with NEMA two-hole lugs and a bend radius suited for side or bottom wiring access. The unit is naturally air-cooled through front-mounted exhaust vents, needs only about an inch of rear clearance from obstructions, and runs at a low sound level — at least 3dB below NEMA Standard ST-20 requirements. Available new or used; used units are inspected and confirmed fully functional before resale.
Common Questions
How does the deposit and reservation process work?
A refundable deposit of up to $1,000 (or the item's full price if it's lower) holds this unit and locks the quoted price for 48–72 hours while we confirm availability and arrange delivery. If your order doesn't move forward, the deposit is fully refunded.
Do you deliver, and does it cost extra?
Yes, we deliver nationwide. Delivery is coordinated after reservation and quoted based on your location and the unit's size, so it isn't included in the listed price.
What's your return policy?
Returns are accepted within 7 days of delivery. Return shipping and any related costs are the customer's responsibility.
Can I write this purchase off as a business expense?
Businesses may qualify to deduct the full purchase price in the year it's placed in service under Section 179, rather than depreciating it over several years. Rules and limits vary, so this isn't tax advice — talk to your accountant about your specific situation.
