1 / 420ft Container Chassis
A 20ft container chassis weighing 6,700 lbs with a rated capacity up to 67 tons, sized to standard 48-inch dock height, in new and used condition.
- Chassis Condition
- New, Used
Full Description

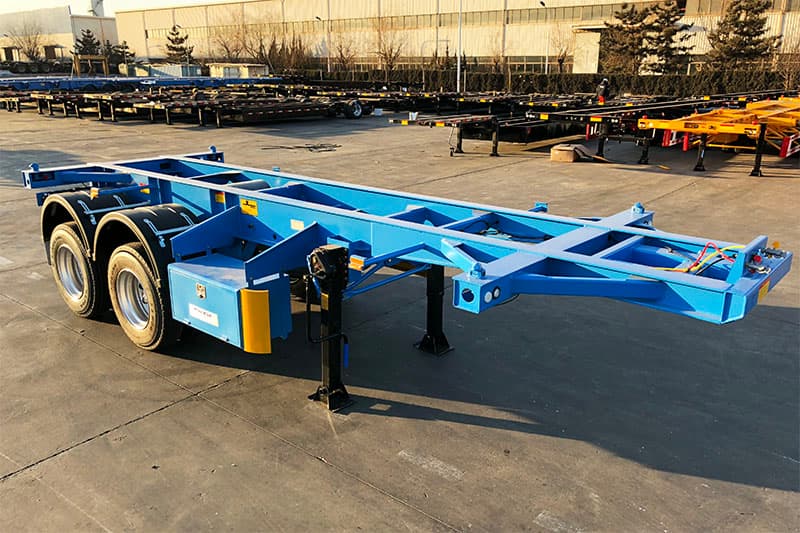

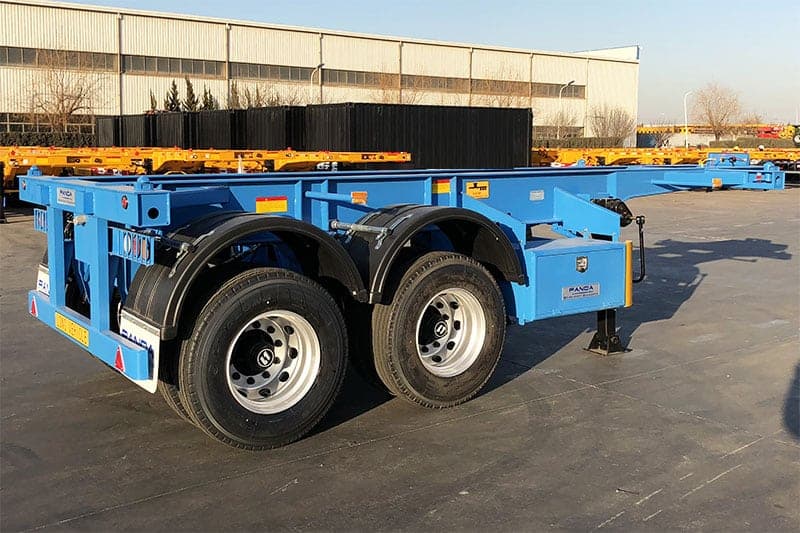

This 20-foot container chassis is a tandem-axle, straight-frame slider chassis built for the stevedoring and transportation of a single ISO 20-foot container weighing up to an estimated 45,000 lbs. Slider positioning is set with a lock-pin assembly that indexes through holes in the frame rails — in the closed position, the chassis is ready for loading and unloading, while extending it sets the chassis up for road transport. Overall length is 23 feet 6 inches closed and 27 feet 6 inches extended, with an overall width of 96 inches, a king pin location 18 inches from the front, a coupler height of 48 inches, and a tare weight of approximately 6,600 lbs. The frame and main fabricated parts are high-strength, low-alloy ASTM A572 Grade 50 steel with a minimum yield point of 50,000 PSI. Standard components include 10.00 x 20 tires on 5-spoke wheels, a Hutch three-leaf-spring suspension rated at 11,000 lbs per spring, two axles rated at 22,500 lbs each with 16.5 x 7-inch Q brakes and automatic slack adjusters, and a Meritor Wabco 2S/1M anti-lock braking system with 30/30 spring brake chambers. Landing gear uses a two-speed mechanism with square-leg tubing and 10-inch x 10-inch low-profile sand shoes, twist locks are cast steel to engage ISO corner castings, and the electrical system is 12-volt with plug-type connectors, a 7-way plug, and sealed wire harnesses and lighting. The finish is a commercial sandblast, primer, and paint system, and the chassis includes conspicuity tape, a rear bumper, and 24 x 30-inch mud flaps. Like other standard chassis, it's designed to carry 20-foot and 40-foot ISO containers with two axles; a tri-axle chassis is generally needed once a 20-foot container exceeds roughly 36,000 lbs or a 40-foot container exceeds roughly 44,000 lbs. The chassis is built to meet AAR, FMVSS, ISO, ANSI, DOT, ABS, SAE, and TTMA standards. Available in New, Used, and Refurbished condition.
| Unit | Condition | Price |
|---|---|---|
| 20ft Container Chassis (this unit) | New, Used | $5,500 |
| 40ft Container Chassis | — | $10,000 |
| 40ft Gooseneck Chassis | — | $9,500 |
| 2024 De Lucio USA 40/20 Extendable Chassis New | — | $29,000 |
Common Questions
Is the 20ft Container Chassis available new or used?
This listing is available in the following condition(s): New, Used. Contact our team to confirm current availability for the condition you need.
How does the deposit and reservation process work?
A refundable deposit of up to $1,000 (or the item's full price if it's lower) holds this unit and locks the quoted price for 48–72 hours while we confirm availability and arrange delivery. If your order doesn't move forward, the deposit is fully refunded.
Do you deliver, and does it cost extra?
Yes, we deliver nationwide. Delivery is coordinated after reservation and quoted based on your location and the unit's size, so it isn't included in the listed price.
What's your return policy?
Returns are accepted within 7 days of delivery. Return shipping and any related costs are the customer's responsibility.
Can I write this purchase off as a business expense?
Businesses may qualify to deduct the full purchase price in the year it's placed in service under Section 179, rather than depreciating it over several years. Rules and limits vary, so this isn't tax advice — talk to your accountant about your specific situation.
